· 4WAY lock control

4 authentication methods such as PIN, card, NFC smart phone and emergency key
· Double authentication mode

Double authentication mode for the safety of consumers
· Trespass alarm

When door is forced opened while locked, alarm sounds to warn of trespassing
· High temp. warning

Alarm sounds when there are fires or high temperatures exceeding 70℃ automatically releasing lock
for consumer safety in the case of accidents
· Internal security mode

Block unlocking from exposed Pin and cards
· 3-minute lock

When Pin or card authentication fails 5 times, alarm goes off and functions stop for 3 minutes
· Emergency power

When battery has no power, a 9V battery is used for emergency power
· Auto lock

Locking device automatically activates when door is locked by a magnetic sensor
· Lo battery warning

When battery is low while locking device is used, an alarm will sound off and battery warning light will turn on
· IoT function

Use smart phone to open and close doors using the smart phone via BLE and Z-wave as well as setting various functions
and managing entry/exit and warning history using an application

· Product specifications

Outer size 79mm(W) X 167.4mm(H) X 40mm(D)
Inner size 71.3mm(W) X 151.8mm(H) X 39mm(D)
· Response lock

Tubular type single cylinder [dead bolt]
· DOOR response door thickness

35mm ~55mm
· Response BACK SET

60mm , 70mm
· Power used

4 AA alkali batteries
※ Lithium ion chargeable batteries cannot be used
· Emergency power

9V rectangular battery (6LR61)
· Battery life

PIN + card app. 1 year (when using 10 times a day)
PIN + card + BLE (Z-wave) app. 8 months (when using 10 times a day)
· Waterproofing

IPX4
· Card specifications

Mifare(ISO14443A)
· PIN

Set as desired between 4 and 12 digits
· Basic composition

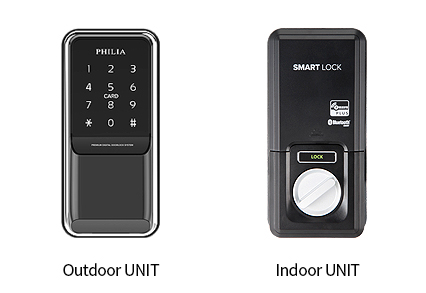

Outer measurement UNIT
Inner measurement UNIT
2 key tags, 2 sticker cards
Bolts and parts for installation
